X Y Z 3 Axis Vibration Test Stand With 600x600mm Horizontal Vertical Table

X Y Z 3 Axis Vibration Test Stand With 600x600mm Horizontal Vertical Table

الاسم التجاري: PRECISION
رقم الطراز: VTS-70
الـ MOQ: 1
السعر: $6000
شروط الدفع: T/T
القدرة على التوريد: 100 / شهر
معلومات مفصلة
مكان المنشأ:
الصين
إصدار الشهادات:
CE
دعم مخصص:
OEM ODM
قوة الجيب:
10 كيلو نيوتن
قوة عشوائية:
10 كيلو نيوتن
قوة الصدمة:
20 كيلو نيوتن
نطاق التردد:
1-3000 هرتز
النزوح:
51 ملم
● السرعة:
2.0
حجم الجدول:
500x500 ملم
تفاصيل التغليف:
تغليف الصادرات القياسية
القدرة على العرض:
100 / شهر
إبراز:

600x600mm Vibration Test Stand,3 Axis Vibration Test Stand,X Y Z Vibration Test Stand

,

3 Axis Vibration Test Stand

,

X Y Z Vibration Test Stand

وصف المنتج

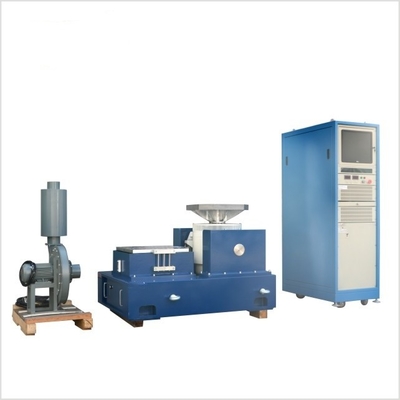

X, Y & Z 3-Axis Vibration Test Stand with 600x600mm Horizontal & Vertical Table

Our X, Y & Z 3-Axis Vibration Test Stand provides an unparalleled solution for comprehensive multi-directional vibration testing, featuring a spacious 600x600mm combined horizontal and vertical test table. This advanced system is engineered to accurately replicate complex real-world vibrational environments, allowing you to rigorously evaluate the durability, performance, and integrity of your products in all three dimensions (X, Y, and Z) without the need for manual re-fixturing. Ideal for industries demanding the highest levels of realism and efficiency in product validation, our test stand ensures your products can withstand the most challenging dynamic stresses.

Key Features

  • True 3-Axis Vibration: Capable of generating simultaneous or sequential vibrations along the X, Y, and Z axes, providing a highly realistic simulation of multi-directional dynamic loads.
  • Integrated 600x600mm Test Table: Features a large, unified table that functions for both vertical (Z-axis) and horizontal (X & Y-axis) testing, eliminating the need for separate setups or re-mounting.
  • High Precision & Repeatability: Engineered with robust mechanics and advanced control systems to deliver accurate and repeatable test results across all three axes.
  • Versatile Payload Capacity: Designed to accommodate a wide range of test articles, from small components to larger assemblies.
  • Wide Frequency Range: Capable of generating diverse vibration profiles including sine, random, shock, and mixed-mode tests over a broad frequency spectrum.
  • User-Friendly Interface: Intuitive software and controls simplify test setup, execution, and data analysis for complex multi-axis profiles.
  • Robust & Durable Construction: Built with high-quality materials to ensure stable operation and long-term reliability even under continuous, demanding use.
  • Customizable Fixturing Integration: Easily integrates with custom test fixtures designed to securely mount your specific products for optimal vibration transmission.

Applications

  • Automotive & Aerospace: Comprehensive validation of components, sub-assemblies, and systems against multi-directional vehicle and flight dynamics.
  • Electronics & Telecommunications: Durability testing of complex electronic enclosures, communication equipment, and consumer devices.
  • Defense & Industrial: Rigorous assessment of equipment intended for harsh operating environments with unpredictable vibrations.
  • Research & Development: Advanced material characterization, structural dynamics analysis, and accelerated life testing under multi-axial stress.
  • Quality Assurance: Ensuring product reliability and compliance with multi-axis vibration standards.

Benefits

  • Unparalleled Realism: Simulates real-world conditions more accurately than single-axis testing, uncovering potential failure modes otherwise missed.
  • Maximized Efficiency: The integrated 3-axis table eliminates time-consuming re-fixturing, significantly reducing test setup and overall test time.
  • Enhanced Product Reliability: Identifies and helps mitigate design flaws earlier in the development cycle, leading to more robust products.
  • Comprehensive Data: Provides in-depth insights into product behavior under complex vibrational loads for advanced analysis and reporting.
  • Reduced Development Costs: Speeds up validation processes and minimizes the need for costly field failures or redesigns.

Technical Specifications:



Rated Sine/ Random/ Shock Force 1,100 kgf/1.100 kgf/2200 kgf Armature Mass 13 kg
Frequency Range 5-3500 Hz Inserts Size (Standard) M10
Max./Continuous Displacement p-p 51 mm/51 mm Load Attachment Points (Standard) 25
Max. Velocity 2.0 m/s Natural Frequency-Thrust Axis <3Hz
Max.Sine/ Random Acceleration 85/60g Max. Vertical Load Support 300 kg
Armature Diameter 335 mm Stray field @152 mm above table ≤lmT (10 gauss)
Fundamental Resonance Frequency 3,000 Hz (nom) ±5% Dimension LxWxH 940 mmx715 mm* 780 mm
Allowable Armature Overturning Moment 300 Nm Weight (Uncrated) 1.000 kg



Are you ready to elevate your product testing with comprehensive multi-axis vibration simulation? Contact our experts today to discuss your X, Y & Z 3-axis vibration test requirements and discover the ideal solution for your products.
